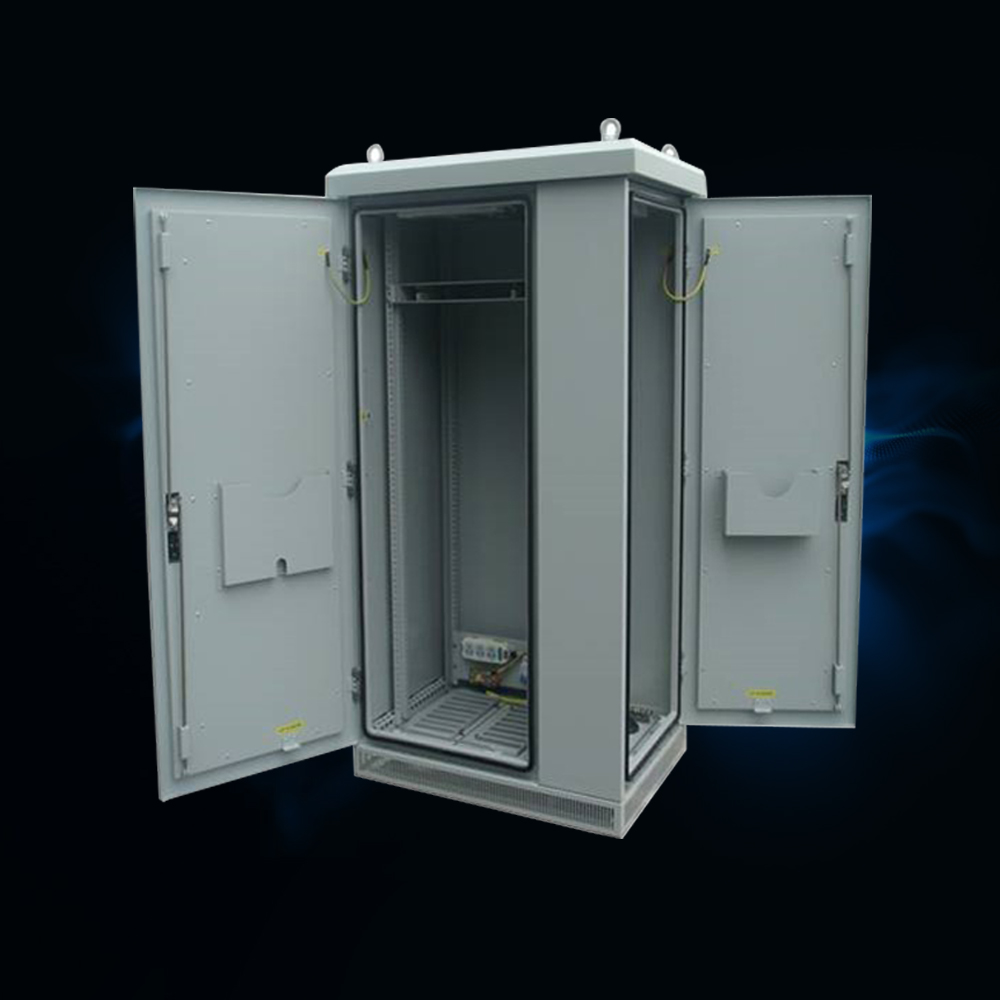

NBS700 FTTC+VDSL Outdoor Cabinet

PRODUCT DESCRIPTION
Application: The NBS700 cabinet is an outdoor cabinet system that provides maximum protection of customer’s telecom equipment against vandalism and extreme weather conditions. This cabinet is the ideal solution for installations over existing cross connect cabinets in parallel with the hosting of active and passive telecom equipment.
DESCRIPTION

Features:

•  Dual wall aluminum

•  Robust design

•  Modular design

•  Easy installation process

•  Solid profile technology

•  Excellent  heat dissipation

•  19”technology with moving frames

•  Cooling capacity by using heat exchanger

•  Customer specific integrations

•  Left anf Right type  available,depending on the installation site

•  1x ISAM7302, up to 192 VDSL

•  1 battery string (40Ah), 1h backup time


Highlight feature

Cabinet:

Dimensions:

27.5x 44x 27.5inch (WxHxD) – cabinet

27.5x 10x 27.5inch (WxHxD) ) –  plinth

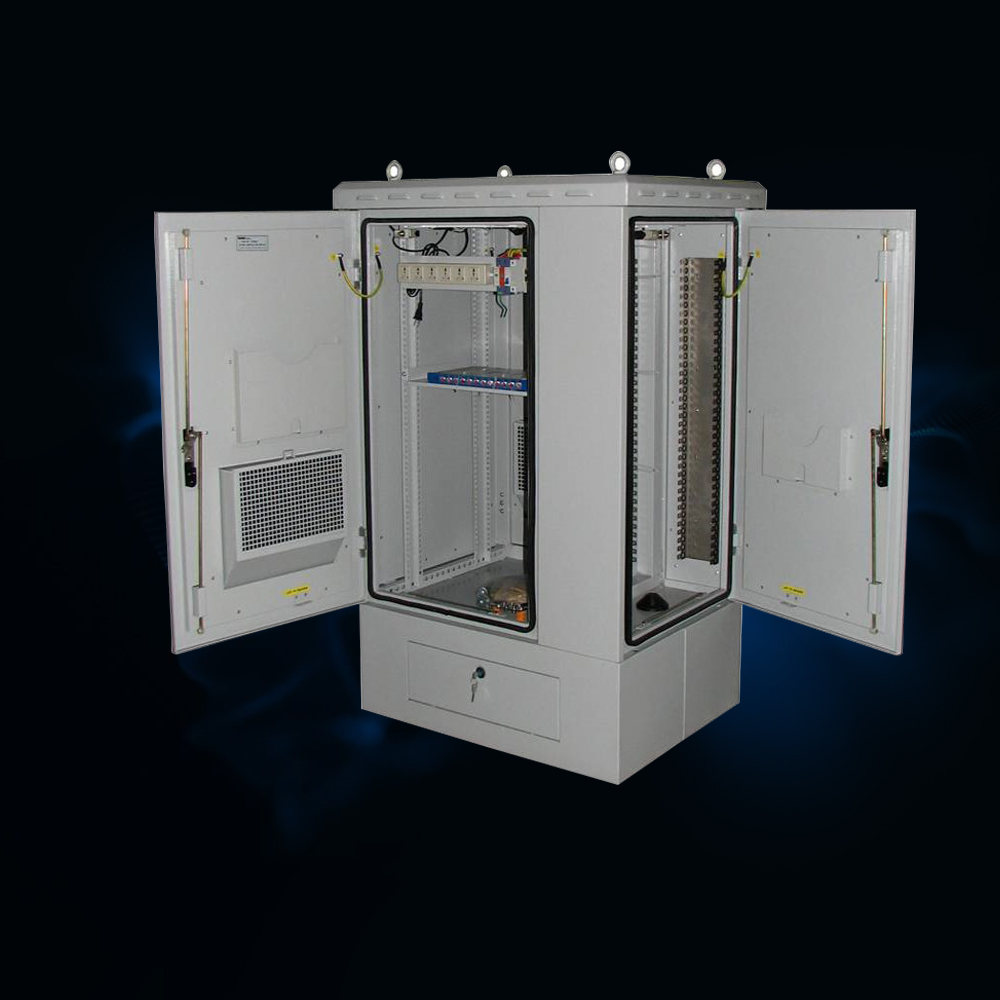

The cabinet: Aluminum alloy, double wall , three front doors.

The plinth: Aluminum alloy, singel wall

19" equipment mounting rail

22U wide for equipment, power unit, and ODF

Grounding bars in the equipment and MDF compartments

Color RAL 7035 of enclosure

Closed type of the plinth, rectangular shape with 4 legs

Protection category: IP55 to EN 60 529/10.91

Protection against burglary up to RC 2 (resistance class), according to DIN EN V 1630: 1999-04

Cooling:

HEX installed in the door








Envireonmental & Mechanical Specifications


  Envireonmental
     Proection ClassIP55
     Impact ProectionIK10
     Operation Temperature-45°C to +45°C (according to ETSI 300 019-1-4,Class 4.1E)
     Storage Temperature-25°C to +45°C (according to ETSI 300 019-1-1,Class 1.2)
     Transportation Temperature-40°C to +45°C (according to ETSI 300 019-1-2,Class 2.3)
     EarthquakeZone 4
  Mechanical
   ConstructionAluminum alloy
   SurfacePoeder Coated,RAL 7035
     Reserved for PSU with DC Distribution1U 19"(extra 1U for DC terminals)
     Reserved for ODF1U
     Reserved for AC PDU3U
   Free User Space22U 19"
   Locking Mechaism3-Points system
   Cable Entry PointBottom
  Temperature Control
    Cooling systemPassive / Heat exchanger 60w/k
    Heater-
 Sensors
    Door Alarm ContactIncluded
   Smoke SensorIncluded
   TemperatureIncluded
   Flood SensorIncluded
