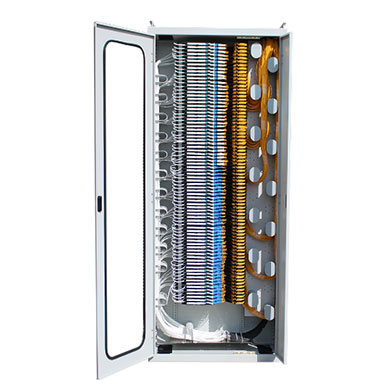

Fiber Distribution Cabinet FDC960

PRODUCT DESCRIPTION
Application:Optical fiber distribution frame FDC960 provides flexible cabling access, expandable frame concept, integrated cable management and a future proof modular design with the highest termination capacity possible and superior cable management. High density side access type of patch panel is also designed to fit a variety of termination, splice, and storage applications. This frame and subrack are very popular worldwide, especially in South East, European, Latin American market. One of our partners in Vietnam is Pyramid Vietnam Coporation.
DESCRIPTION

Features:

1, Enhanced visual appearance

2, Highly stable and rigid construction

3, Standard 19”& ETSI installations

4, Designed to be used together with high density side access type patch panels

5, Maximum fiber density of 2016 ports (splice & patch) and superior cable management

6, Special cable glands to fix the maximum number of bundle cables on the ground

7, Slot type cable guide compartments to feed the modules via miniflex tubes

8, No crushed or stressed fibers

9, Wide range of splice, patch and cable storage options

10, Bend radius protection of 35 mm throughout entire frame and all modules

11, Max cable protection

12, Interchangeable cassettes for various cable/tube counts and connector styles

13, Accepts WDM and splitter cassettes

14, Integral patch cords management

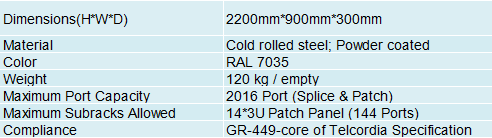

Technical Parameters:
