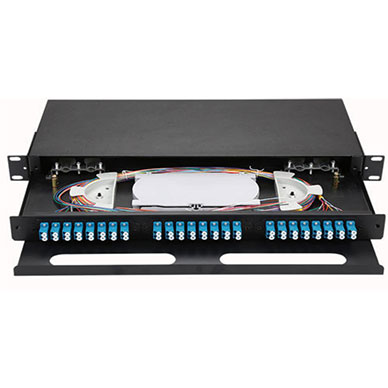

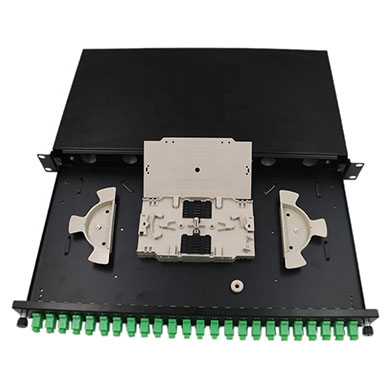

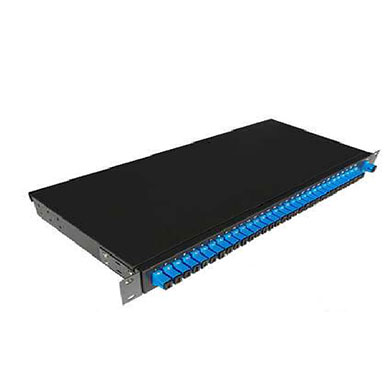

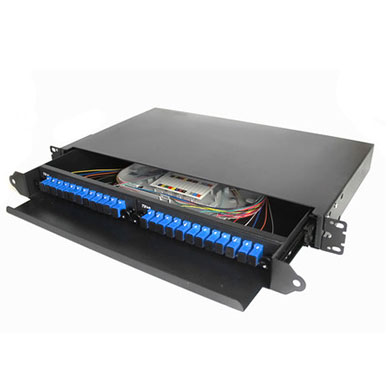

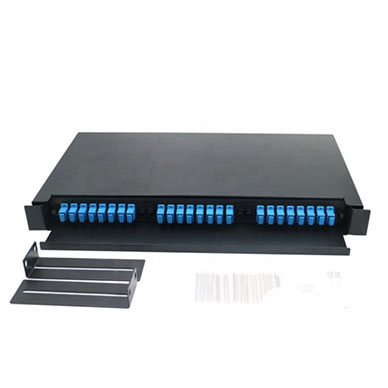

PATCH PANEL PP-96

PRODUCT DESCRIPTION

Application:PP-96 patch panel can applied in branch connection of optical cable termination;19"standard structure,sliding design,rack mounted;Suitable for FC,SC,ST,LC Adapters.The fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.

DESCRIPTION

Features:

1. Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.

2. Easy installation: 19", 21’’ and 23’’ wall mounting.

3. For standard 19", 21’’ and 23’’ racks use (other rack width options available on request).

4. Front rack mount brackets work with most network cabinets.

5. Easy operations: Drawer-type.

6. Removable front door with designation labels.

7. Vertical cable guides on exit side allow for managed routing and protection of the fiber exiting the panel.

8. Multi-functions – Works with all Series A modules1 (not just for splicing & terminating, also with options for splitters or fiber storage).

9. Protected patch panel offers secure environment for adapters, patch cords and pigtails.

10. Adoptable adapter types: FC, SC, ST simplex adapters and LC duplex adapters.

Technical Parameters:

Capacity:	Max 96 Cores
Dimensions:	19''/21''/23''
Material:	Metal, Powder coating
Weight	2.5 kg / empty
