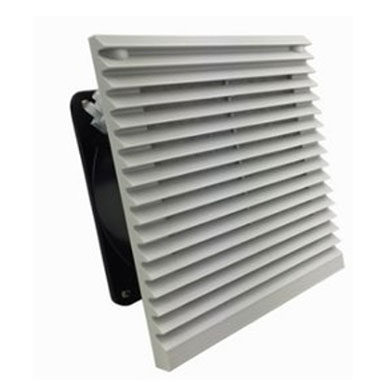

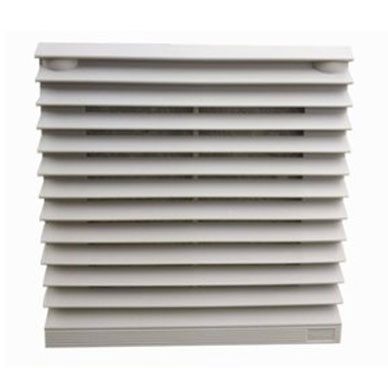

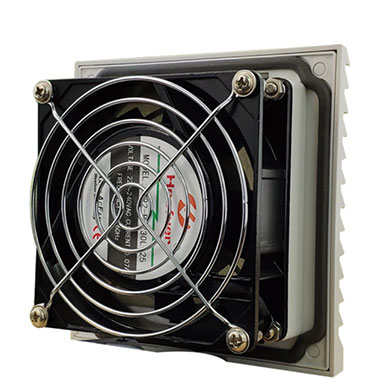

Exhaust Filter Fan
PRODUCT DESCRIPTION
Application:Efficient ventilation, heat dissipation, dustproof and insect proof, used in various communication cabinets, power distribution cabinets, IP room cabinets and other fields.
DESCRIPTION
Features:

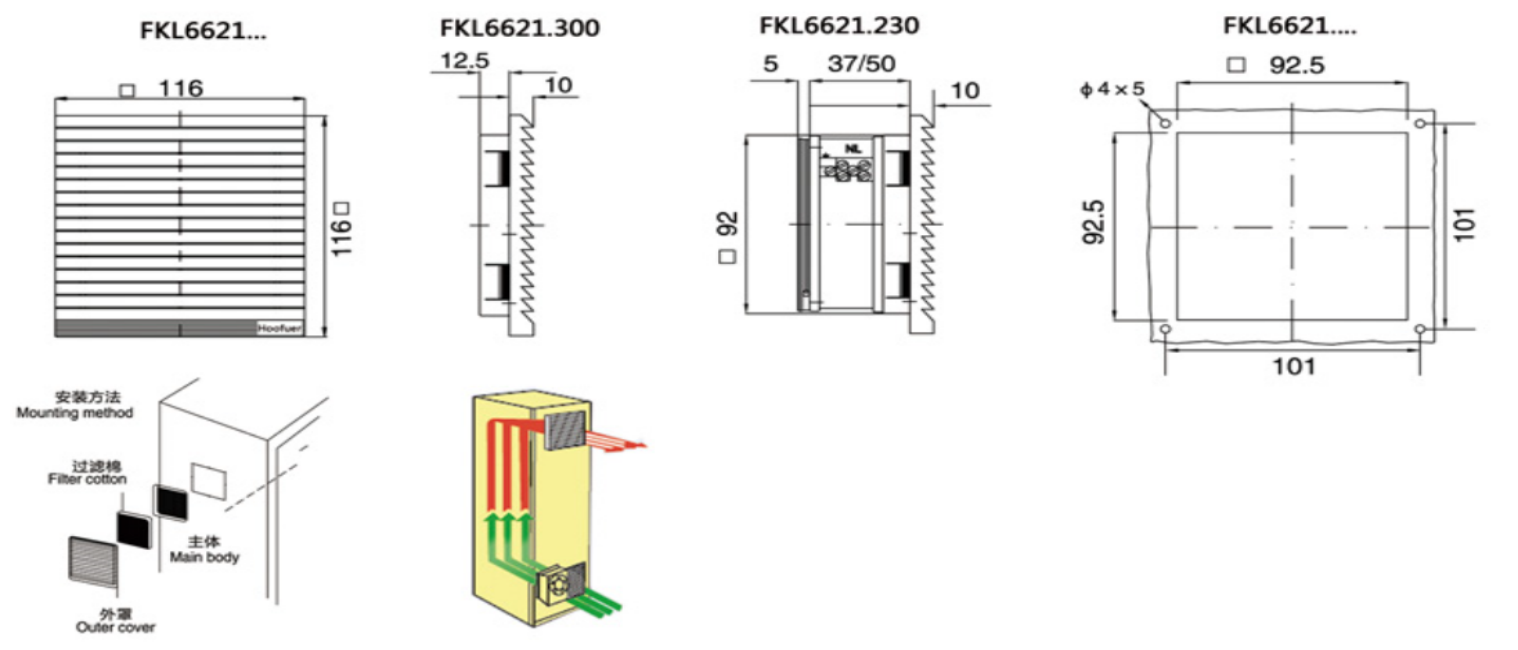

1 Cut Out Dimensions (HxW)3 in (mm): 8.82 x 8.82 (224 x 224)
2 Rated Voltage: 115V, 230V, 24 VDC
3 Installation size 4, airflow rate up to 265 m³/h
3 2 performance classes, cut-out compatible
4 Secure contact with the housing wall via contact springs
5 System of protection IP 54, NEMA type 12
6 UR and UL approval
7 UV resistance (IP 55 version)
8 Cut-out compatible to installation size 4 of the 3rd and 4th Generation

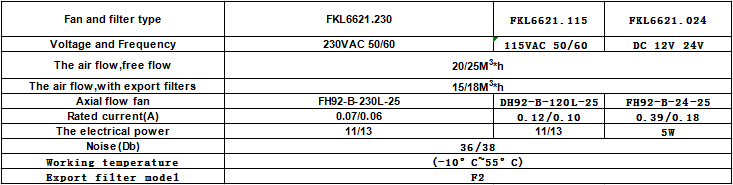

Technical Parameters:
