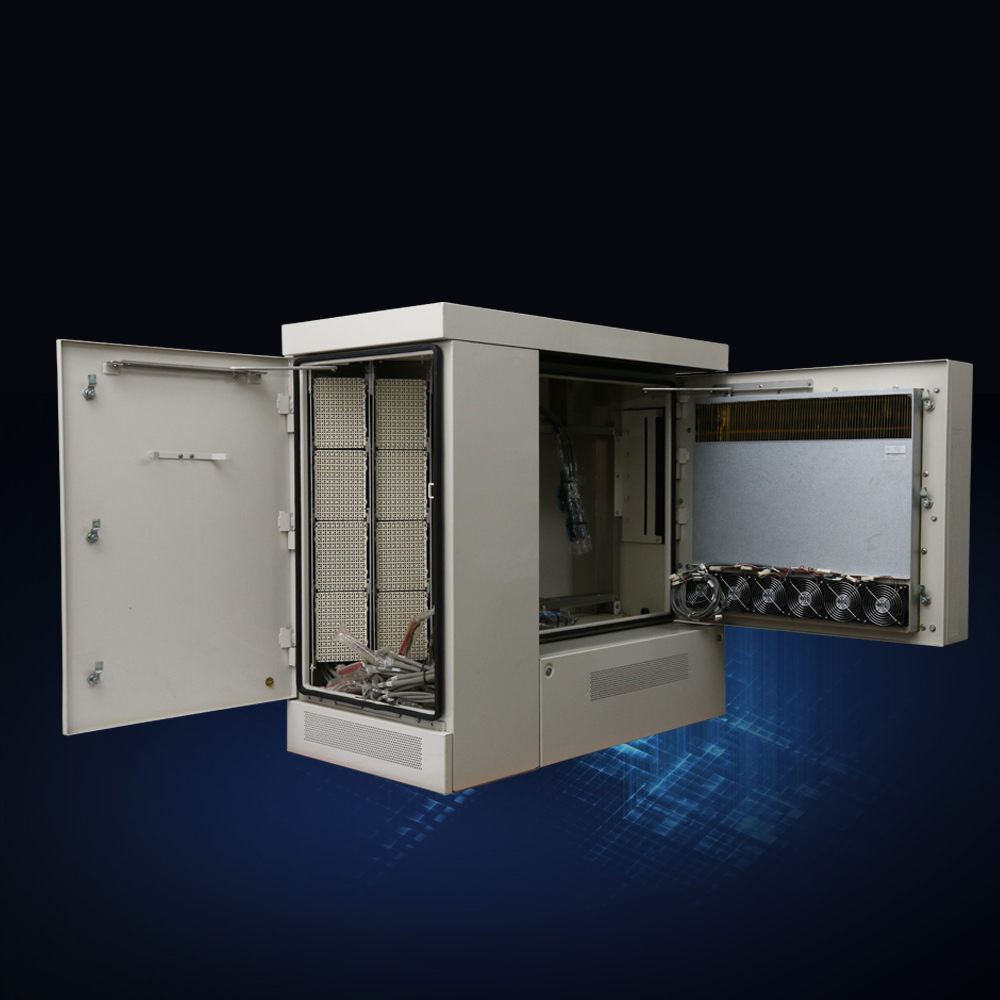

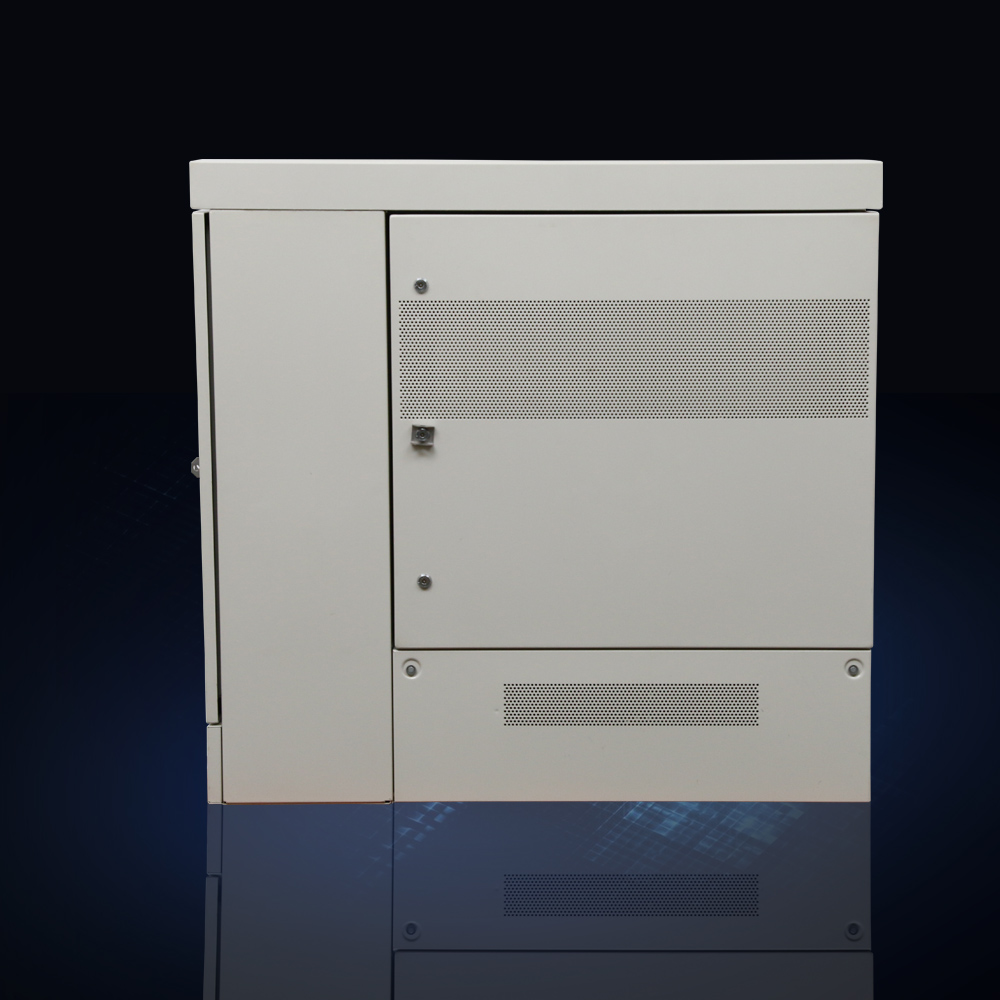

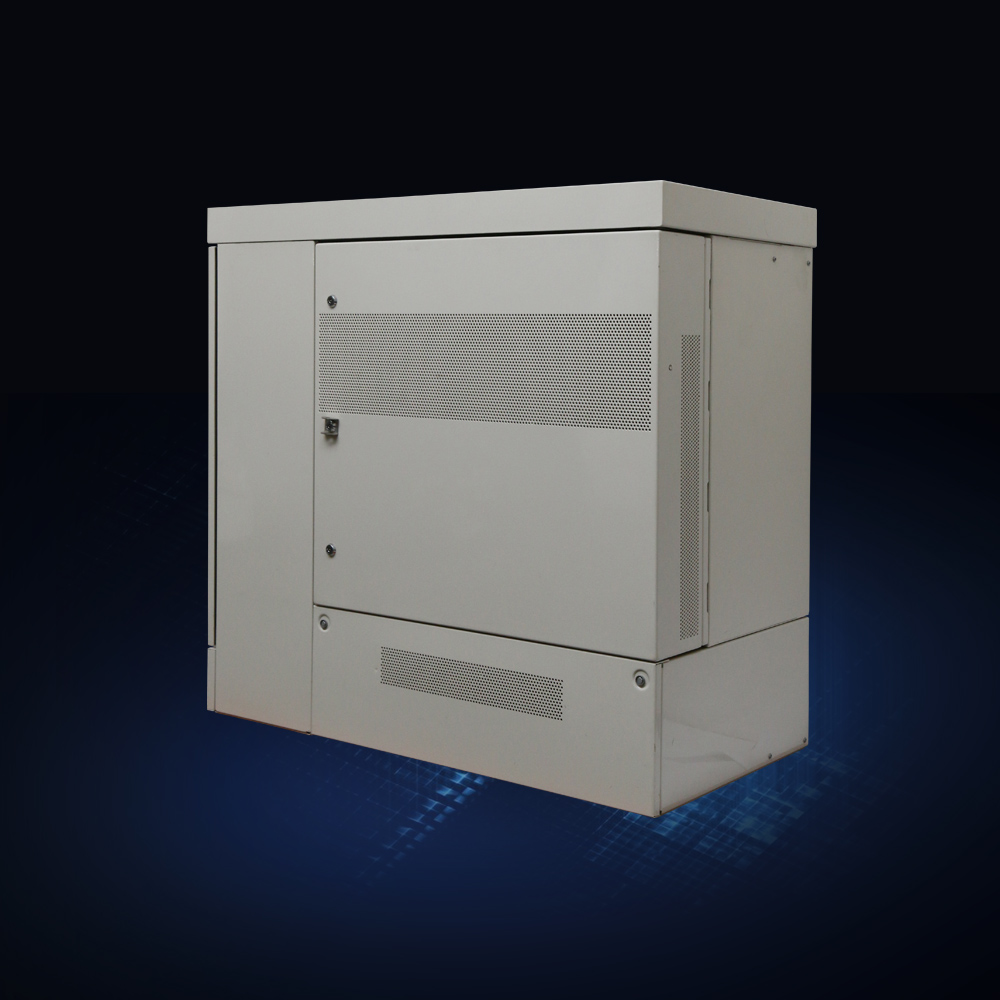

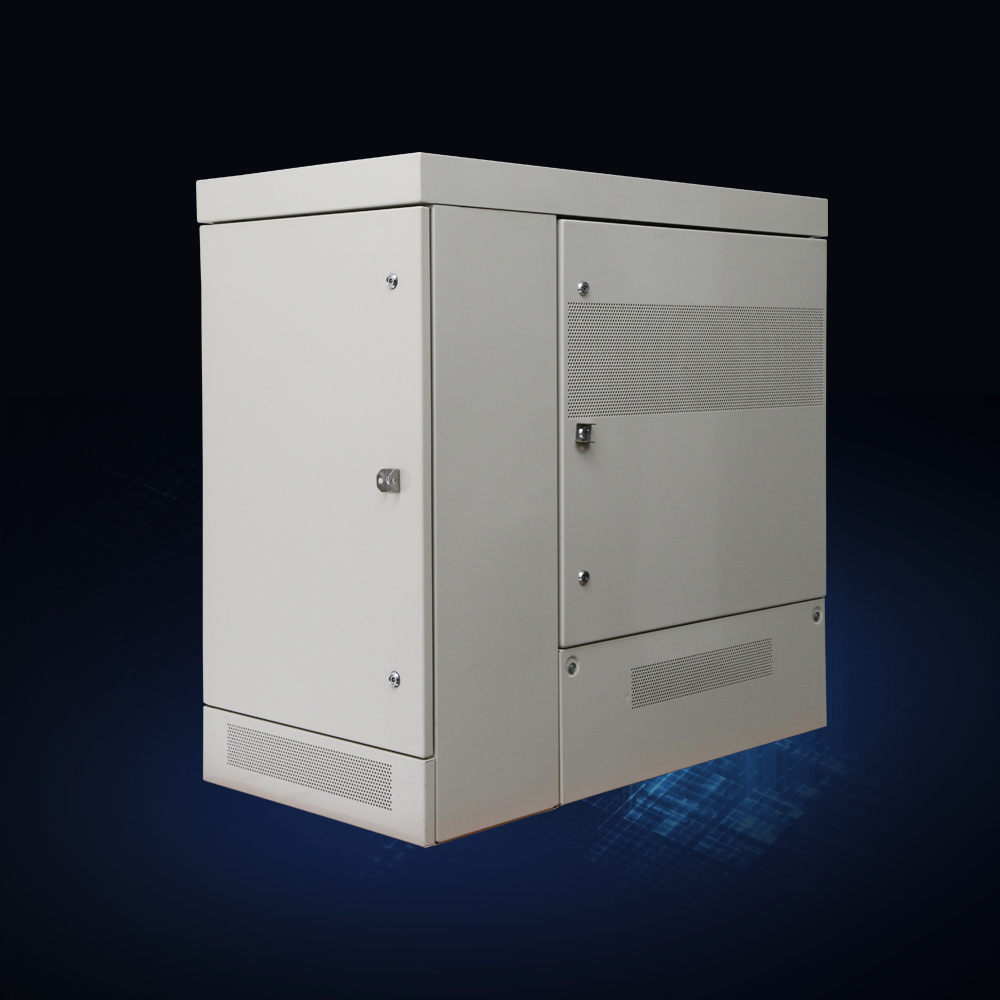

NBS1200 Outdoor Cabinet(Multiple Doors & Compartment）
PRODUCT DESCRIPTION
Application:The NBS1200 cabinet is an outdoor cabinet system that provides maximum protection of customer’s telecom equipment against vandalism and extreme weather conditions. This cabinet is the ideal solution for installations over existing cross connect cabinets in parallel with the hosting of active and passive telecom equipment.
DESCRIPTION
Features:
• Dual wall aluminum
• Robust design
• Modular design
• Easy installation process
• Solid profile technology
• Excellent heat dissipation
• 19”technology with moving frames
• Cooling capacity by using heat exchanger
• Customer specific integrations
• Left anf Right type available,depending on the installation site
• 1x ISAM7302, up to 192 VDSL
• 1 battery string (40Ah), 1h backup time
Highlight feature
Cabinet:
Dimensions:
52 x50x 27.5inch (WxHxD) – cabinet
52 x 10x 27.5inch (WxHxD) ) – plinth
The cabinet: Aluminum alloy, double wall , three front doors.
The plinth: Aluminum alloy, singel wall
19"" equipment mounting rail
22U wide for equipment, power unit, and ODF

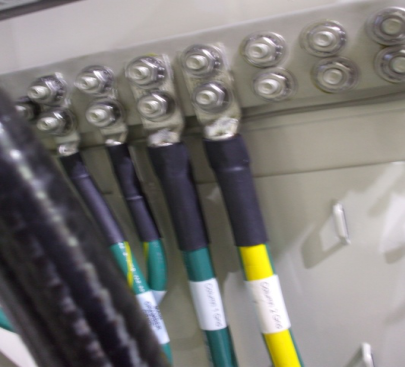

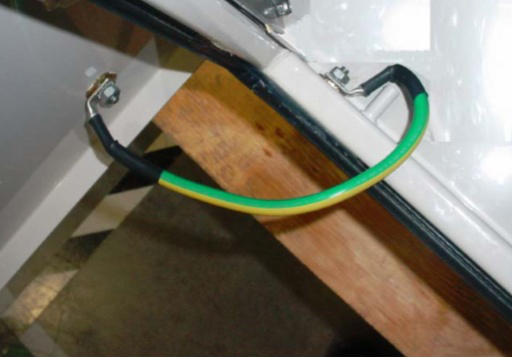

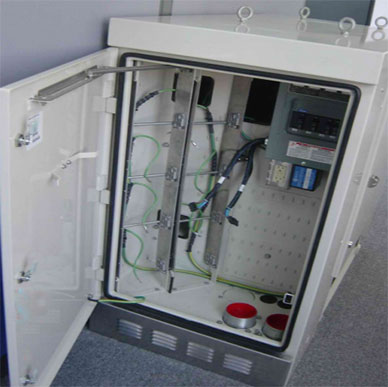

Grounding bars in the equipment and MDF compartments
Color RAL 7035 of enclosure
Closed type of the plinth, rectangular shape with 4 legs
Protection category: IP55 to EN 60 529/10.91
Protection against burglary up to RC 2 (resistance class), according to DIN EN V 1630: 1999-04
Cooling:

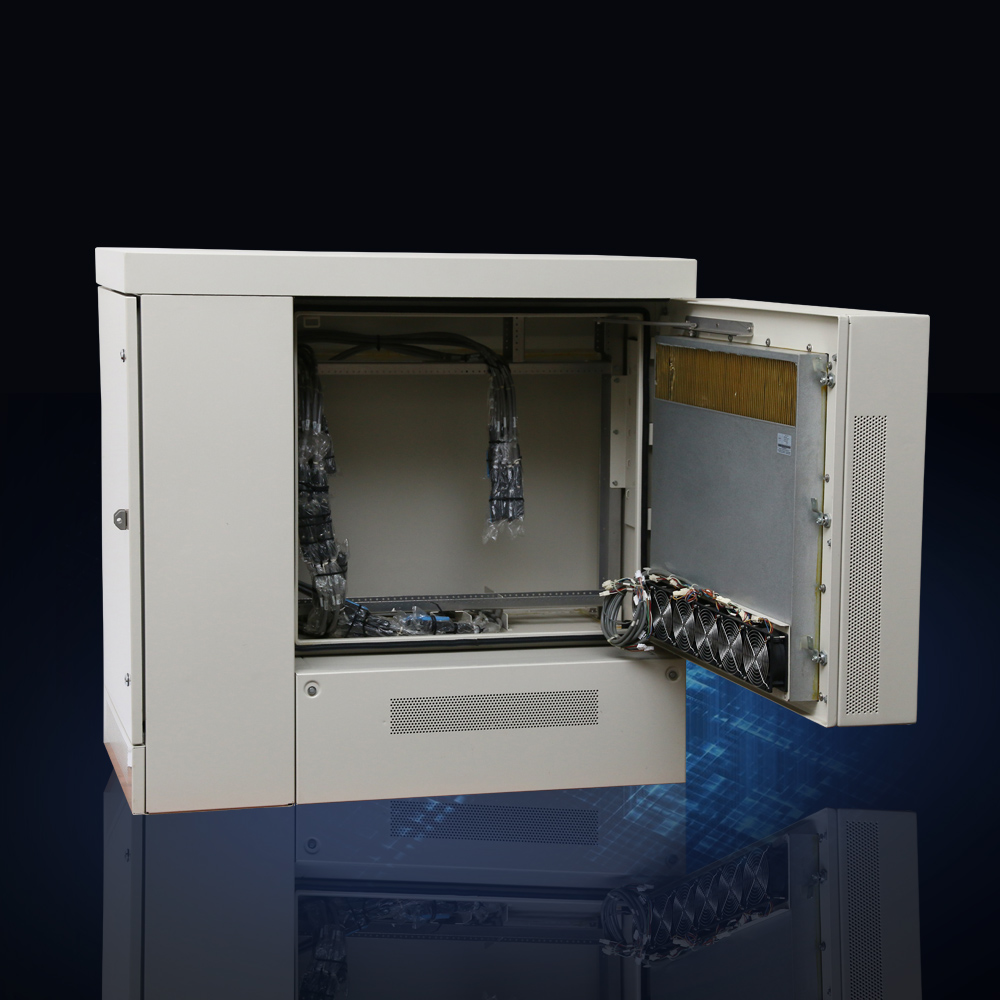

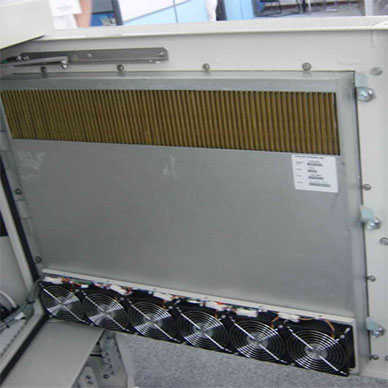

HEX installed in the door
|
|
|
|
Envireonmental & Mechanical Specifications
| Envireonmental | |||
| Proection Class | IP55 | ||
| Impact Proection | IK10 | ||
| Operation Temperature | -45°C to +45°C (according to ETSI 300 019-1-4,Class 4.1E) | ||
| Storage Temperature | -25°C to +45°C (according to ETSI 300 019-1-1,Class 1.2) | ||
| Transportation Temperature | -40°C to +45°C (according to ETSI 300 019-1-2,Class 2.3) | ||
| Earthquake | Zone 4 | ||
| Mechanical | |||
| Construction | Aluminum alloy | ||
| Surface | Poeder Coated,RAL 7035 | ||
| Reserved for PSU with DC Distribution | 1U 19"(extra 1U for DC terminals) | ||
| Reserved for ODF | 1U | ||
| Reserved for AC PDU | 3U | ||
| Free User Space | 22U 19" | ||
| Locking Mechaism | 3-Points system | ||
| Cable Entry Point | Bottom | ||
| Temperature Control | |||
| Cooling system | Passive / Heat exchanger 60w/k | ||
| Heater | - | ||
| Sensors | |||
| Door Alarm Contact | Included | ||
| Smoke Sensor | Included | ||
| Temperature | Included | ||
| Flood Sensor | Included | ||
